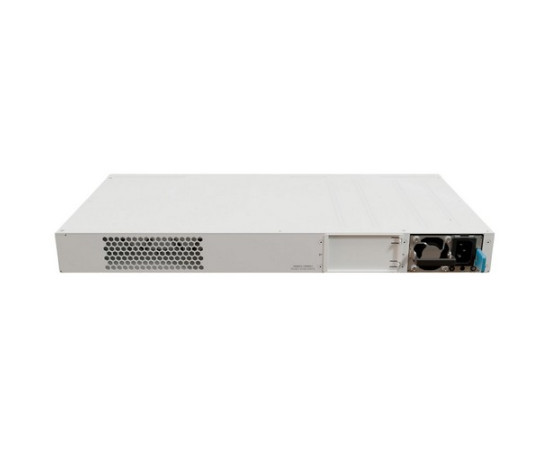

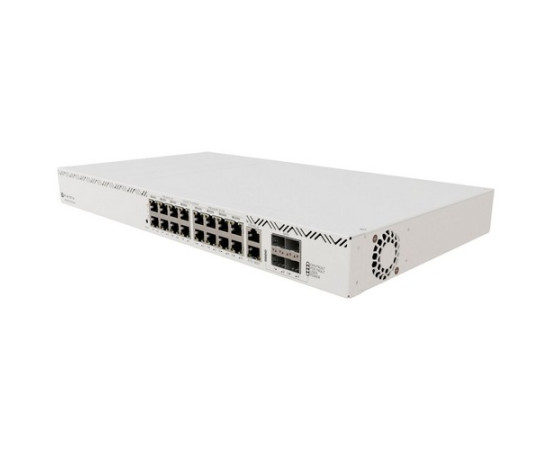

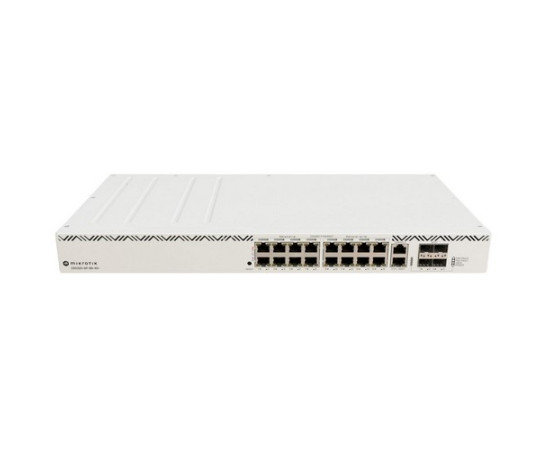

MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}

MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
NEW PRODUCT
MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
MikroTik Cloud Router Switch {CRS320-8P-8B-4S+RM}
Price not available
Model CRS320-8P-8B-4S+RM
Volumetric Weight 3.00kg
Package Dimensions 48.00cm x 31.50cm x 6.00cm
SKU CRS320-8P-8B-4S+RM
MPN CRS320-8P-8B-4S+RM
Warranty 12 Months

PRODUCT DESCRIPTION

The Cloud Router Switch CRS320-8P-8B-4S+RM is a PoE switch supporting the 802.3af/at and 802.3bt standards with a total PoE budget of 600 W (up to 1150 W with an additional power supply). The switch offers 17 Gigabit LAN ports, the first eight supports 802.3af/at PoE (maximum 30 W/port), the next eight supports 802.3af/at/bt (maximum 90 W/port), and it also includes 4 10 Gigabit SFP+ ports. It is powered by a Hot-swap power supply with a capacity of 600 W, with the option to purchase a second power supply to increase the total power capacity to 1150 W, but not for redundancy. The maximum device consumption is 36 W.



LAN speed: (17) 10/100/1000Mbps
Optical interfaces: (4) 1G/2.5G/10Gbps
Power type: Mains power (230V)
Redundant power supply: No. Second PSU to to increase capacity to 1150W
Max. power consumption [W]: 36
Power via connector/terminal: 230V AC
Design: Rackmount
Fans: Yes
Chassis design: Metal
Operating temperature [°C]: -10 up to 50
Width [mm]: 444
Height [mm]: 44
Depth [mm]: 235
CPU: 98DX226S
CPU frequency [MHz]: 800
CPU cores: 2
Internal storage [MB]: 32
RAM [MB]: 256
Operating system: RouterOS v7 - L5
IPv6 support: Yes
Default IP address: 192.168.88.1
Default login and password: admin / -



Key Features

  • 17x 10/100/1000 Mbps LAN
  • 4x SFP+ (10 Gbps)
  • 8x 802.3af/at (30 W/port) + 8x 802.3af/at/bt (90 W/port)
  • PoE budget of 600 W - expandable up to 1150 W
  • 1x Hot-Swap power supply, 1x free slot for expanding the total PoE capacity
  • Console RJ45 port
  • Operating system RouterOS v7 Level 5

Package Contents

  • Device
  • Power cable
  • 19" rack mount brackets

Datasheet: CRS320-8P-8B-4S+RM
