Your Price : 412.80€ excl. VAT
(491.23€ Inc. VAT)
- +
Add to Cart
Buy Now Ask Question
Model MAX-16-POE
Volumetric Weight 4.00kg
Package Dimensions 52.00cm x 25.00cm x 12.00cm
SKU MAX-16-POE
MPN USW-PRO-MAX-16-POE
Warranty 24 Months

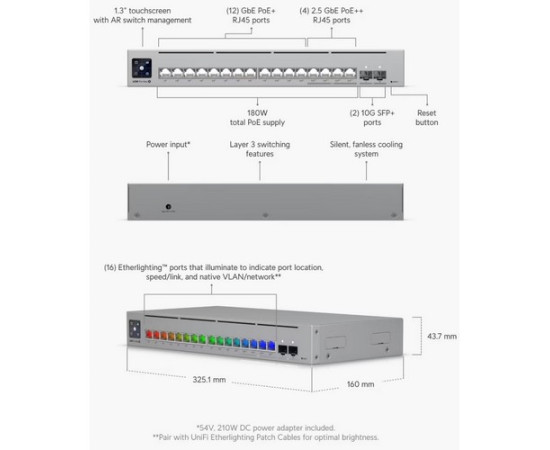

Ubiquiti Pro Max 16-PoE is a new L3 switch that offers 4x 2.5 Gbps ports with PoE++ up to 60W and 12x 1 Gbps ports with PoE+. The total PoE budget is 180 W. For optical interface connection, there are 2 SFP+ ports achieving speeds up to 10 Gb/s. The switch is powered by a DC adapter 54V DC 210W.

Notice: For rack installation, it is necessary to purchase the accessory Ubiquiti Pro Max 16 Rack Mount

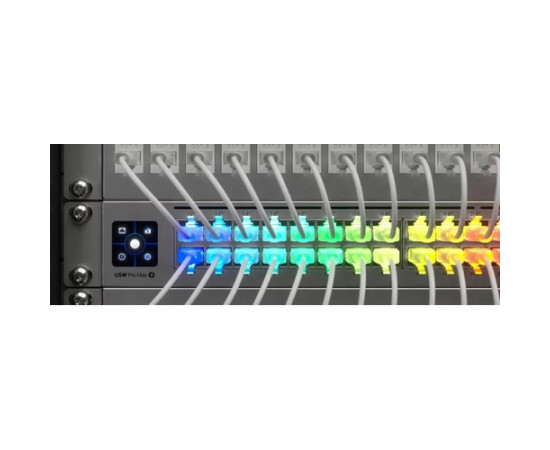

Etherlighting Technology

The switch supports Etherlighting technology, which allows color indication of port location, link speed, user defined device types, PoE status or individual VLANs.



RJ45 Interfaces: (12) 10/100/1000Mbps + (4) 10/100/2500Mbps
Optical Interfaces: Optical interfaces:(2) 1G/10Gbps
PoE Budget:  180W
PoE Output Ports: 16
Power Type: DC connector
PPoE Type: PoE-Out (only)
PoE-Out standards:  802.3af, 802.3at, 802.3at - ultra PoE (60W)
Max. power consumption [W]: 210
Power via connector/terminal: 54V DC
Design: On the wall, Desktop, Rackmount
Chassis design: Metal
Fans: No
Buttons: Reset
Operating temperature [°C]: -5 up to 40
Width [cm]: 32.5
Height [cm]: 4.4
Depth [cm]: 16
Switchning capacity [Gbps]: 84
Packet forwarding rate [Mpps]: 62
Management: UniFi Network

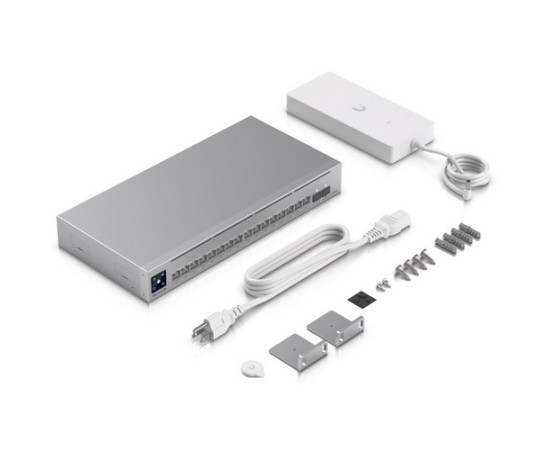

Package contents

  • Device
  • DC Power Adapter
  • Mount kit



Datasheet : USW-PRO-MAX-16-POE
