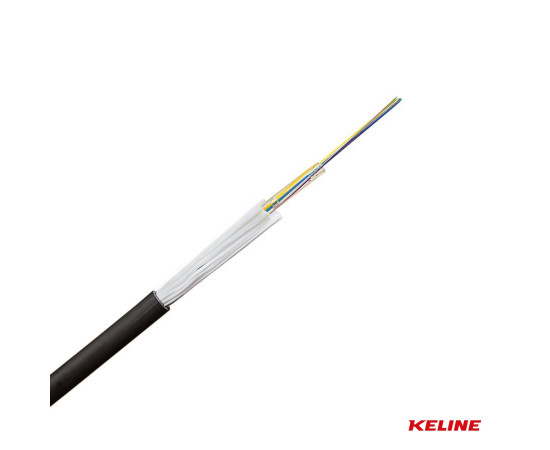

KELINE Cable 12 Core Central Loose Tube, Euroclass Dca - s2, d1, a1, OM3 50/125 μm, 1m

Compare this Product Add to Wish List

KELINE Cable 12 Core Central Loose Tube, Euroclass Dca - s2, d1, a1, OM3 50/125 μm, 1m

Your Price : 1.53€ excl. VAT

(1.82€ Inc. VAT)

Add to Cart

Buy Now Ask Question

Stock: In Stock 1831 pcs.

Model CLTD12OM3-Dca
Volumetric Weight 0.01kg
Package Dimensions 0.52cm x 0.52cm x 100.00cm
SKU CLTD12OM3-Dca
MPN CLTD12OM3-Dca
Warranty N/A Months

Product Description
Specifications

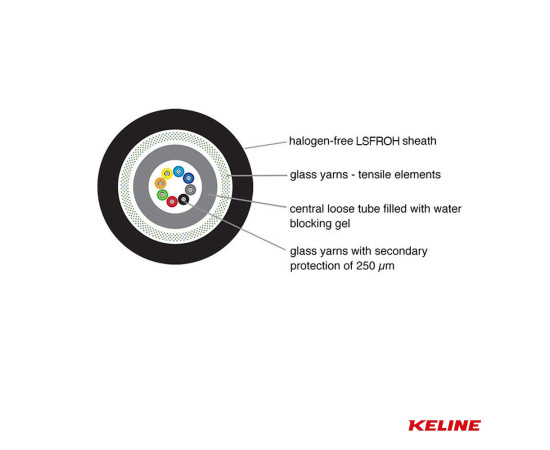

fully dielectric construction, halogen-free LSFROH sheath
tensile elements made of water blocking glass yarns
primary protection of 250 μm
central loose tube filled with water blocking gel
suitable for outdoor as well as for indoor environment
resistant to moisture, water and UV radiation
partial rodent protection (glass rodent protection - GRP)
ideal for horizontal campus duct installations using blowing and pulling technique

Technical specification

Standard temperature range (installation)	-5 °C az +50 °C
Standard temperature range (operation)	-30 °C az +70 °C
Min. bending radius (installation)	104 mm
Min. bending radius (operation)	52 mm
Max. tensile load (installation)	1000 N (100 kg)
Outer cable diameter	5,2 mm
Weight	33 kg / km
Number of tubes x number of fibers	1 x 12
Reaction to fire	Dca - s2, d1, a1
Fire safety	fire retardant, low smoke, zero halogen, non-corrosive

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.

25-Year System Warranty (Warranty is valid after certiciaton of the project by Keyline Installers and issuing of the certificate from Keyline)

Fiber Cables
Armor Type:	Non-Armoured
Cable Type:	Loose Tube
CPR Class:	Dca-s2,d1,a1
Fiber Standard:	OM3
Fiber Type:	Multimode OM3
Indoor/Outdoor:	Indoor/Outdoor
Length [m]:	1
Number of Fibers:	12
