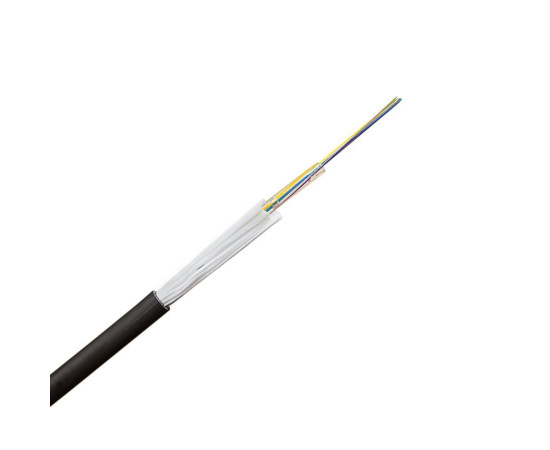

KELINE Cable 8 Core Central Loose Tube, Dca - s2, d1, a1, OS2 9/125 μm, (ITU-T G.652.D), 1m

Price not available

Add to Cart

Buy Now Ask Question

Stock: No Stock 0 pcs.

Model CLTD08OS2-Dca
Volumetric Weight 0.03kg
Package Dimensions 0.54cm x 0.54cm x 100.00cm
SKU CLTD08OS2-Dca
MPN CLTD08OS2-Dca
Warranty N/A Months

Product Description
Specifications

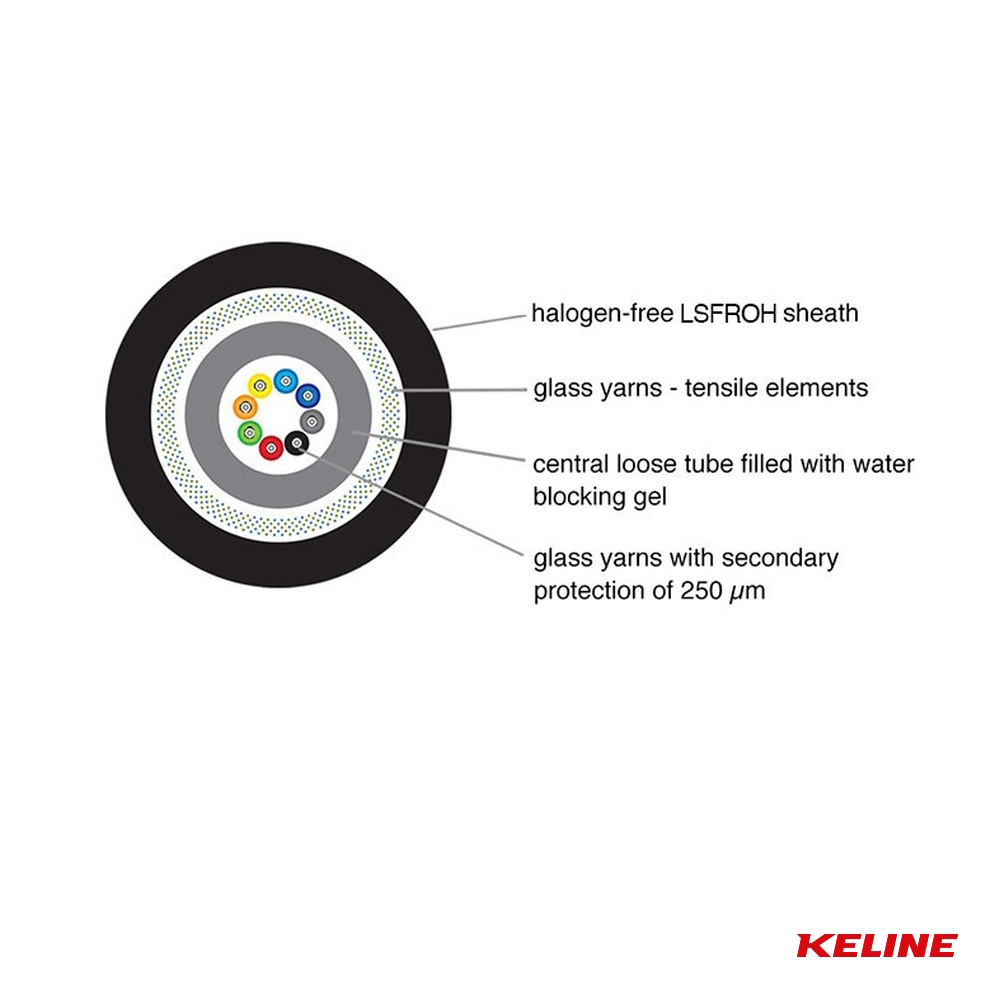

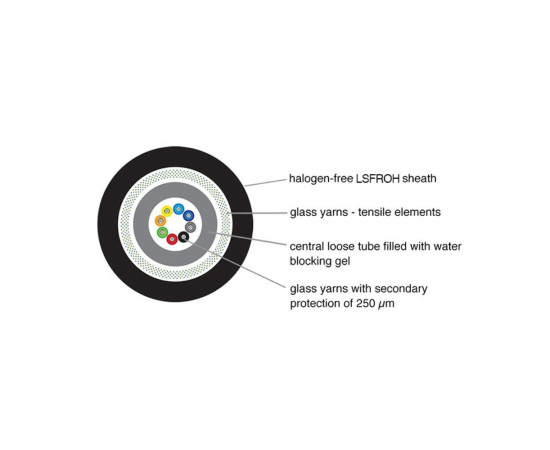

fully dielectric construction, halogen-free LSFROH sheath
tensile elements made of water blocking glass yarns
primary protection of 250 μm
central loose tube filled with water blocking gel
suitable for outdoor as well as for indoor environment
resistant to moisture, water and UV radiation
partial rodent protection (glass rodent protection - GRP)
ideal for horizontal campus duct installations using blowing and pulling technique

Technical specification

Standard temperature range (installation)	-5 °C to +50 °C
Standard temperature range (operation)	-30 °C to +70 °C
Min. bending radius (installation)	104 mm
Min. bending radius (operation)	52 mm
Max. tensile load (installation)	1000 N (100 kg)
Outer cable diameter	5,2 mm
Weight	33 kg / km
Number of tubes x number of fibers	1 x 8
Reaction to fire	Dca - s2, d1, a1
Fire safety	fire retardant, low smoke, zero halogen, non-corrosive

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.

25-Year System Warranty (Warranty is valid after certiciaton of the project by Keyline Installers and issuing of the certificate from Keyline)

Fiber Cables
Armor Type:	Non-Armoured
Cable Type:	Loose Tube
CPR Class:	Dca - s2, d1, a1
Fiber Standard:	OS2
Fiber Type:	Singlemode
Indoor/Outdoor:	Indoor/Outdoor
Length [m]:	1
Number of Fibers:	8
