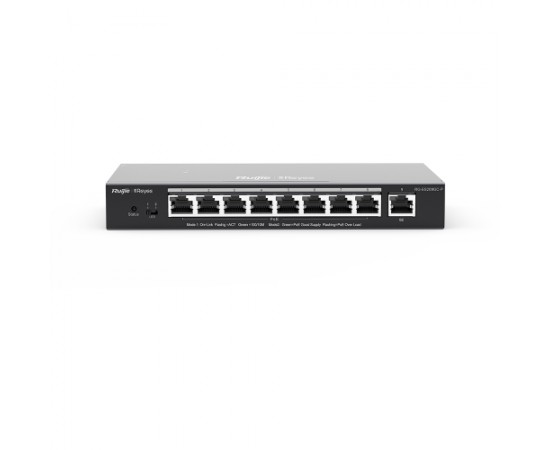

Reyee 9 Port Cloud Managed Layer 2 PoE/PoE+ Switch (RG-ES209GC-P)

Name: Reyee 9 Port Cloud Managed Layer 2 PoE/PoE+ Switch (RG-ES209GC-P)
SKU: RG-ES209GC-P
Price: 146.37 EUR
Availability: OutOfStock

Compare this Product Add to Wish List

Price not available

Add to Cart

Buy Now Ask Question

Stock: No Stock 0 pcs.

Model RG-ES209GC-P
Volumetric Weight 1.00kg
Package Dimensions 20.20cm x 10.80cm x 2.80cm
SKU RG-ES209GC-P
MPN RG-ES209GC-P
Warranty 36 Months

Product Description

MODEL SPECIFICATIONS	RG-ES205GC-P	RG-ES209GC-P	RG-ES218GC-P	RG-ES226GC-P
HARDWARE SPECIFICATIONS
Ports	4 10/100/1000 Base-T ports (802.3 af/at compliant), 1 10/100/1000 Base-T port	8 10/100/1000 Base-T ports (802.3 af/at compliant), 1 10/100/1000 Base-T port	16 10/100/1000 Base-T ports (802.3 af/at compliant), 2 SFP Base-X ports	24 10/100/1000 Base-T ports (802.3 af/at compliant), 2 SFP Base-X ports
Maximum output power per PoE port	30W	30W	30W	30W
Maximum PoE output power per switch	54W	120W	240W	370W
Switching capacity	10Gbps	18Gbps	36Gbps	52Gbps
Packet forwarding rate	7.44Mpps	13.392Mpps	26.784Mpps	38.688Mpps
Surge protection	Common mode: 4KV	Common mode: 4KV	Common mode: 4KV	Common mode: 4KV
Electrostatic discharge	Air discharge: 6KV Contact discharge: 4KV	Air discharge: 6KV Contact discharge: 4KV	Air discharge: 6KV Contact discharge: 4KV	Air discharge: 6KV Contact discharge: 4KV
Power consumption	≤60W	≤130W	≤280W	≤400W
Power supply	External power adapter	External power adapter	Built-in power supply	Built-in power supply
Dimensions (W x D x H)	1487826mm	20210828mm	30023043.6mm	440x289x43.6mm
MTBF	>200K	>200K	>200K	>200K
OPERATING ENVIRONMENT
Operating temperature	0 to 40°C	0 to 40°C	0 to 40°C	0 to 40°C
Storage temperature	-40~70ºC	-40~70ºC	-40~70ºC	-40~70ºC
Operating humidity	10% to 90% RH	10% to 90% RH	10% to 90% RH	10% to 90% RH
Storage humidity	5% to 95% RH	5% to 95% RH	5% to 95% RH	5% to 95% RH
SOFTWARE FEATURES
MAC capacity	2K	4K	8K	8K
Static MAC address	16	16	16	16
VLAN	Support 802.1Q VLAN
Port management	Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security	Support broadcast storm suppression, port speed limit, port isolation
L2 features	Support port mirroring, loop protection, cable detection
Management	Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
